    100mm Width Electric Roll Press Machine for Electrode Preparation

    Ask Lasest Price
    Brand Name : TICO
    Model Number : STC-DDG-100
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 80 sets per month
    Delivery Time : 5~8 working days
    • Product Details
    • Company Profile

    100mm Width Electric Roll Press Machine for Electrode Preparation

    100mm Width Electric Roll Press Machine for Electrode Preparation


    Brief Introduction

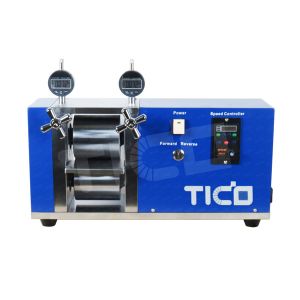

    STC-DDG-100 is a compact electric rolling press machine, which can be used for battery electrode pressing for battery research. The pressing thickness and speed can be adjusted. It is designed with dual roller of dia.96mm x W100mm.


    Features


    ● High roller hardness HRC62, surface plated by chrome treatment.

    ● Vertical rollers installation design for convenient feeding and pressing for strip material.

    ● Pressing thickness can be adjusted.

    ● Rolling speed can be adjusted by speed controller.

    ● Electric rolling makes uniform pressing force.


    Technical Paramters


    Model

    STC-DDG-100

    Voltage

    AC220V ±10%, 50Hz

    Power200W
    Operation modeElectric
    Feeding speed0 ~ 40mm/s
    Roller width0~100mm
    Roller diameterφ96mm
    Pressing thickness0 ~ 3mm adjustable
    Roller cylindricity≤ ±2µm
    Roller hardnessHRC62
    Roller smoothness> 0.4
    GearGrinding grade
    Roller placementVertical

    Dimension

    L520 * W220 * H350mm

    Weight

    50kg


    Warranty

    1 year warranty with lifetime support.


    FAQ


    1. Are you a manufacturer?


    A: Yes, our factory is located in Shenzhen, China.
    We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.


    2. Do you accept customized product?

    A: Yes. Most of our products can be customized to meet different requirements.


    3. Will you provide test video before dispatch?

    A: Yes, we take test video for every equipment before dispatch, which will display how to use it.


    4. Can you offer overseas installation service?

    A: Yes, we can dispatch professional engineer for on-site installation service
